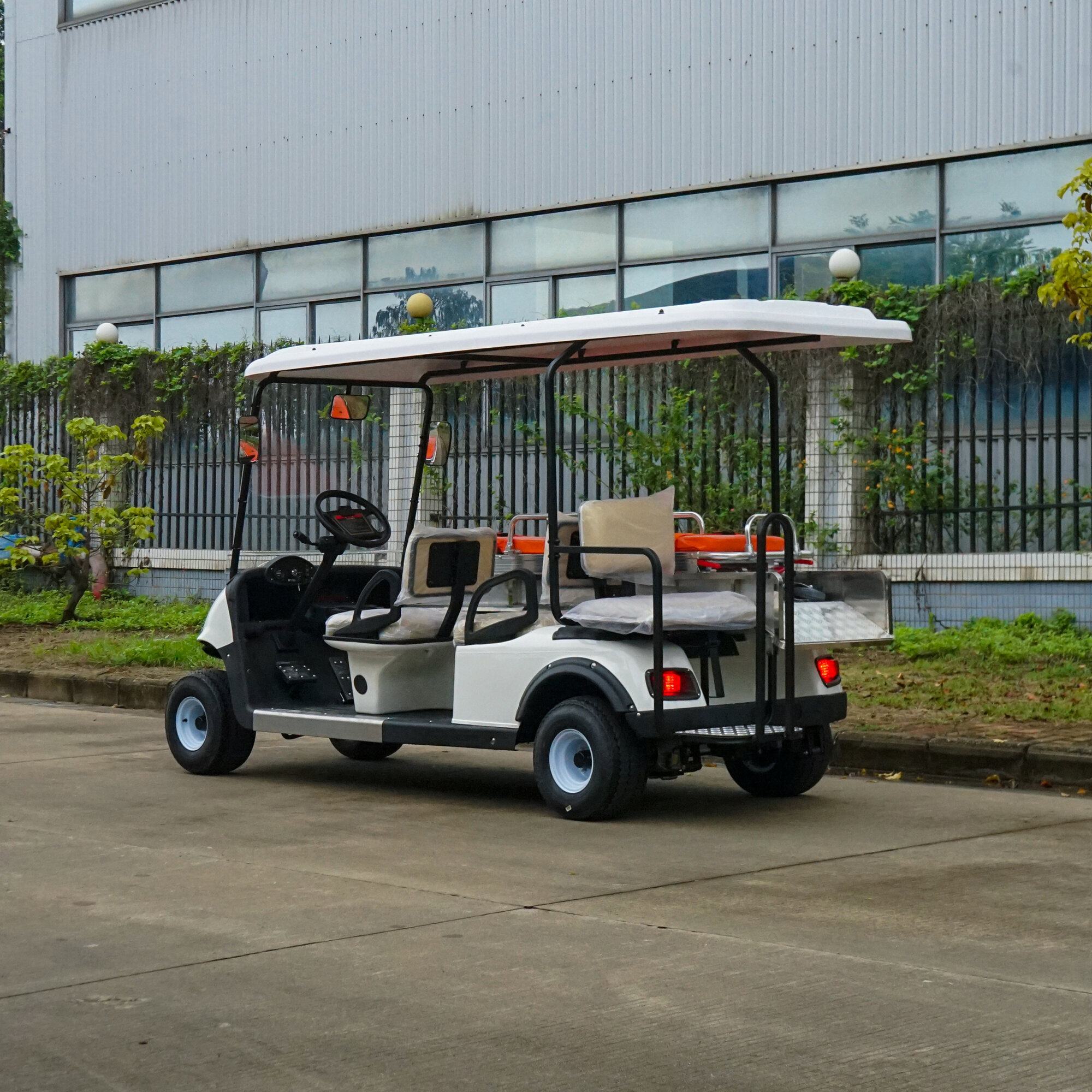

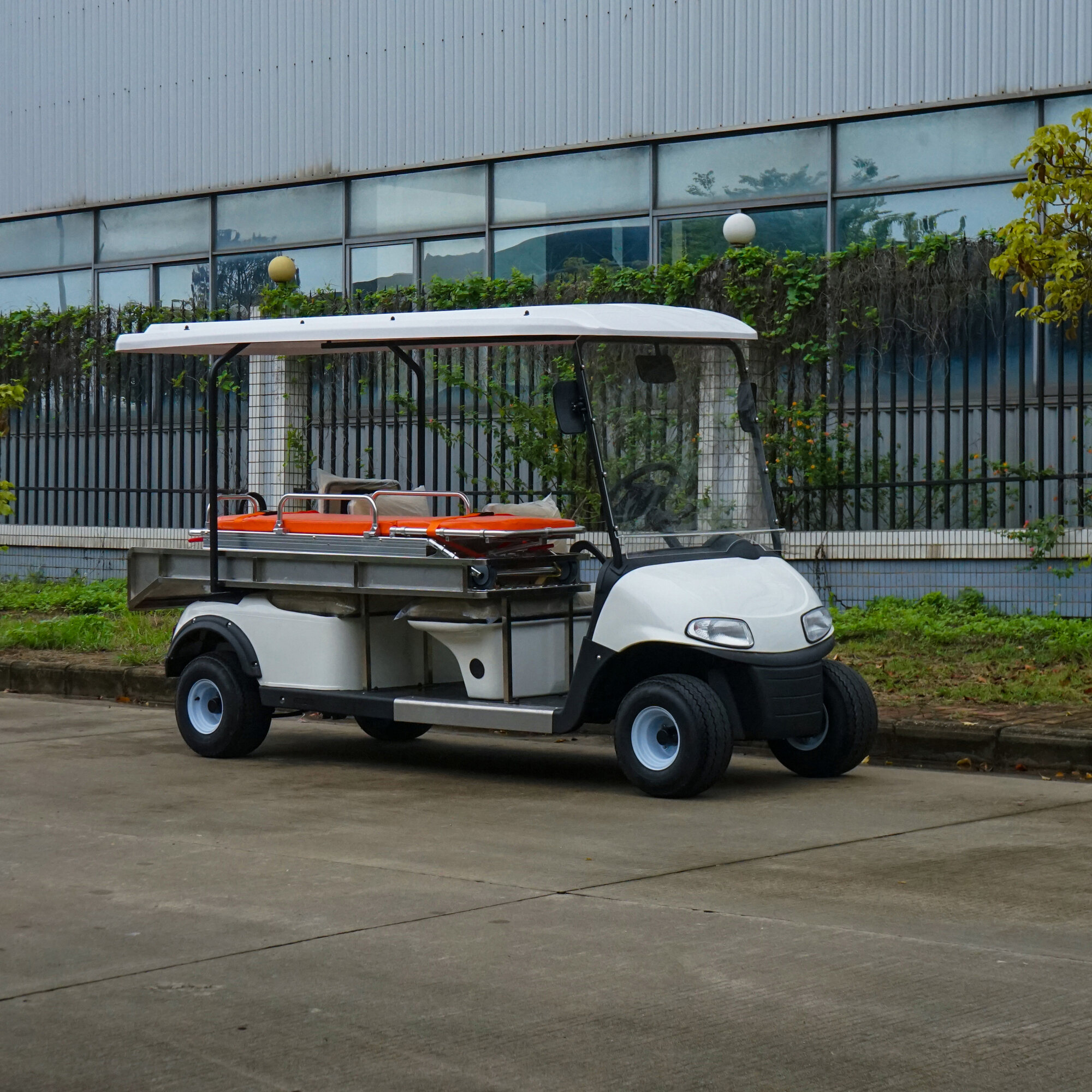

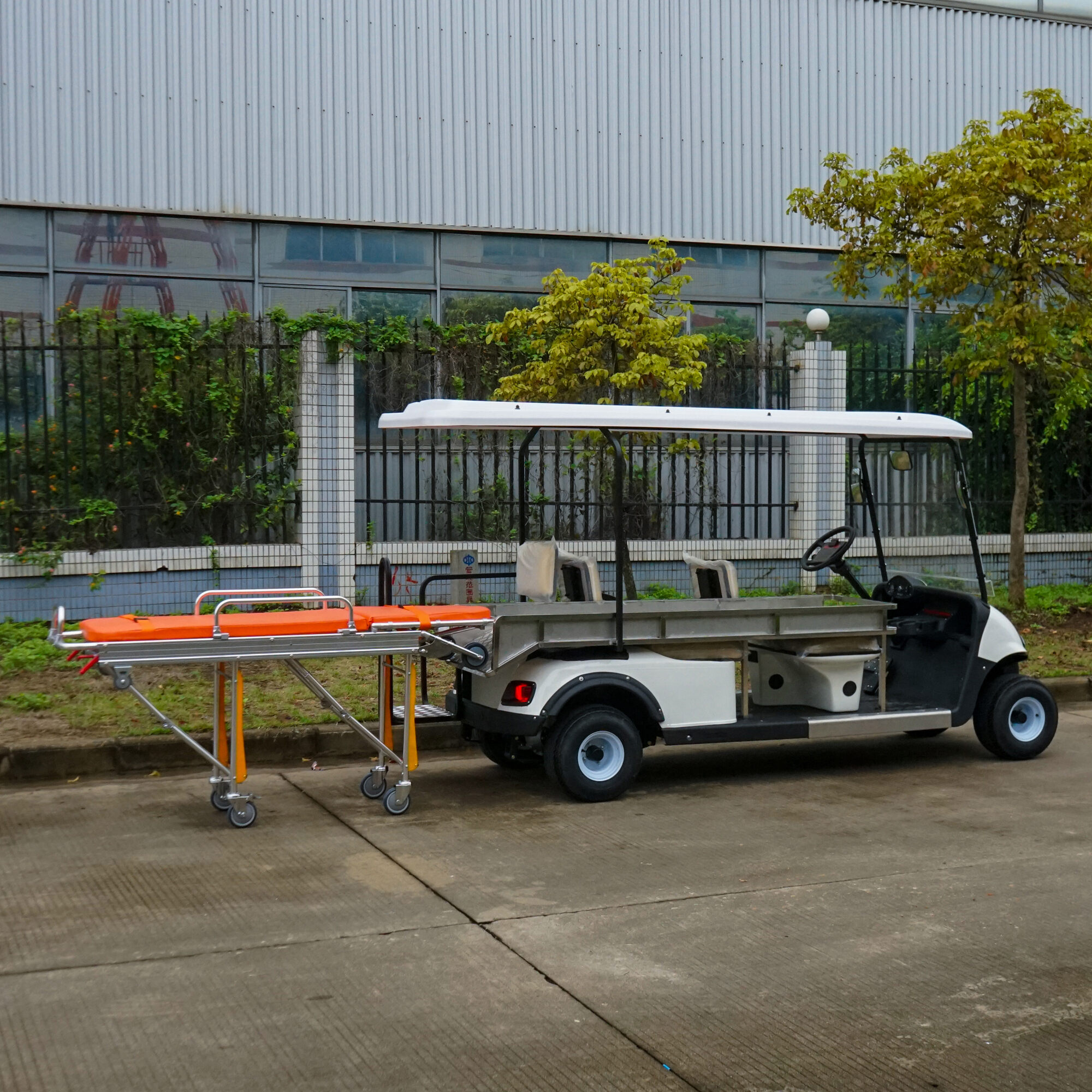

3 Seater Medical Rescue Vehicle Converted from Golf Cart
product detail
The primary function of a medical rescue vehicle is to transport sick or injured patients to medical facilities as quickly as possible. Medical teams on board can provide immediate medical care and stabilization to the patients during transit. This can be crucial in saving lives and reducing the severity of injuries.
They are dispatched to the scene of accidents, natural disasters, and other emergencies. In these situations, medical rescue vehicles serve as mobile medical units, bringing essential medical resources to where they are needed most.
In times of crisis, medical rescue vehicles play a vital role. They can reach patients in remote or hard-to-access areas, providing timely medical assistance. They also help to alleviate the burden on hospitals by transporting patients to the appropriate medical facilities based on their condition.
Moreover, these vehicles are an essential part of a comprehensive emergency response system. They work in coordination with other emergency services such as fire departments and police to ensure a swift and effective response to emergencies.
|
Product Name |
LMG4-JS Rescue Vehicle |
|
L*W*H（mm) |
3590*1200*1830 |
|
Car Load |
500 kg (including driver, passenger and cargo) |
|
Maximum Mileage |
80-100 km |
|
Minimum Ground Clearance |
110mm |
|
Minimum Braking Distance |
≤3.0 m |
|
Max Climb Capability |
30 % |
|
Charging Time |
6-8 hours |
|
Maximum Forward Speed |
25－30 km/h |
|
Other |
Vehicle Waterproof Design |
|
Electric System
|
Motor: 5.0KW high efficiency AC motor, with speed sensor, precise control of speed. Strong overload capability. High temperature resistance, low noise. |
|
Battery: Dedicated 6 8V lead-acid large-capacity deep cycle batteries. |
|
|
Charger: Computer intelligent automatic high frequency high efficiency pulse charger, input voltage is 220V AC, frequency 50HZ, output DC 48V, current 25A. Temperature compensation with battery temperature sensor. Extend battery life |
|
|
Controller: American Curtis controller, with personalized programming, CMOS stepless transmission system. Speed can be adjusted according to customer requirements. |
|
|
Accelerator: Hall type contactless stepless transmission system |
|
|
Vehicle Chassis |
Professional frame type high strength steel bending welded chassis. Sand blasting, zinc spraying, paint three anti-rust treatment |
|
Vehicle Body Covering |
The high-strength impact-resistant composite body (PT+PBT alloy injection molded front cover) has superior impact resistance |
|
Vehicle Backshaft |
High efficiency gear drive, differential ratio 12.31:1, maintenance-free |
| Brake System | Mechanical drum brake braking |
|
Front Suspension System |
Multi-plate leaf spring and hydraulic damping system |
|
Rear Suspension System |
Multi-plate leaf spring and hydraulic damping system |
|
Steering System |
Single-stage rack and pinion steering system |
|
Seat System |
Car seat Leather sofa seat, humanized design, ergonomic. |
| Wheel Tyre |
Radial vacuum 18 × 8.5-8 wide tire |
| Vehicle Instrument Panel |
Curtis electrical meter, ignition switch, direction selector switch, water cup position, storage bin |
| Seat Setting | Seater for 3 |
