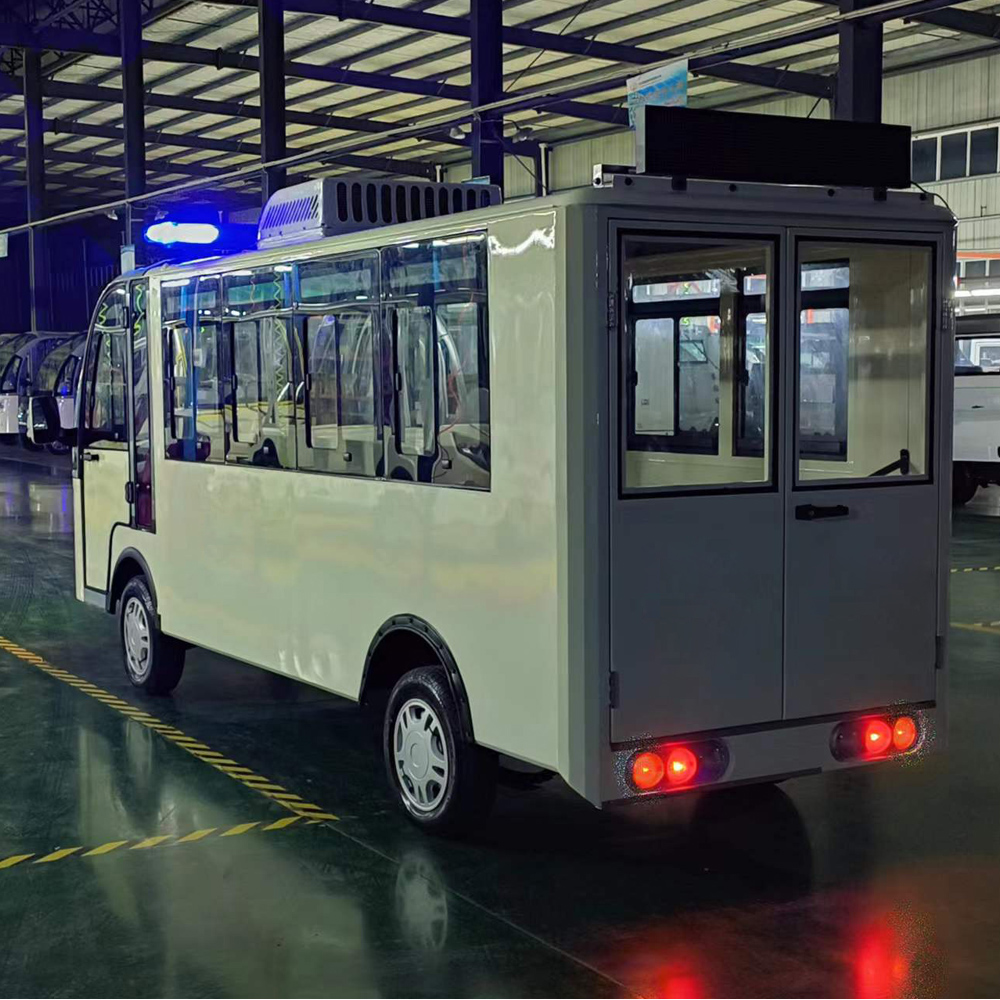

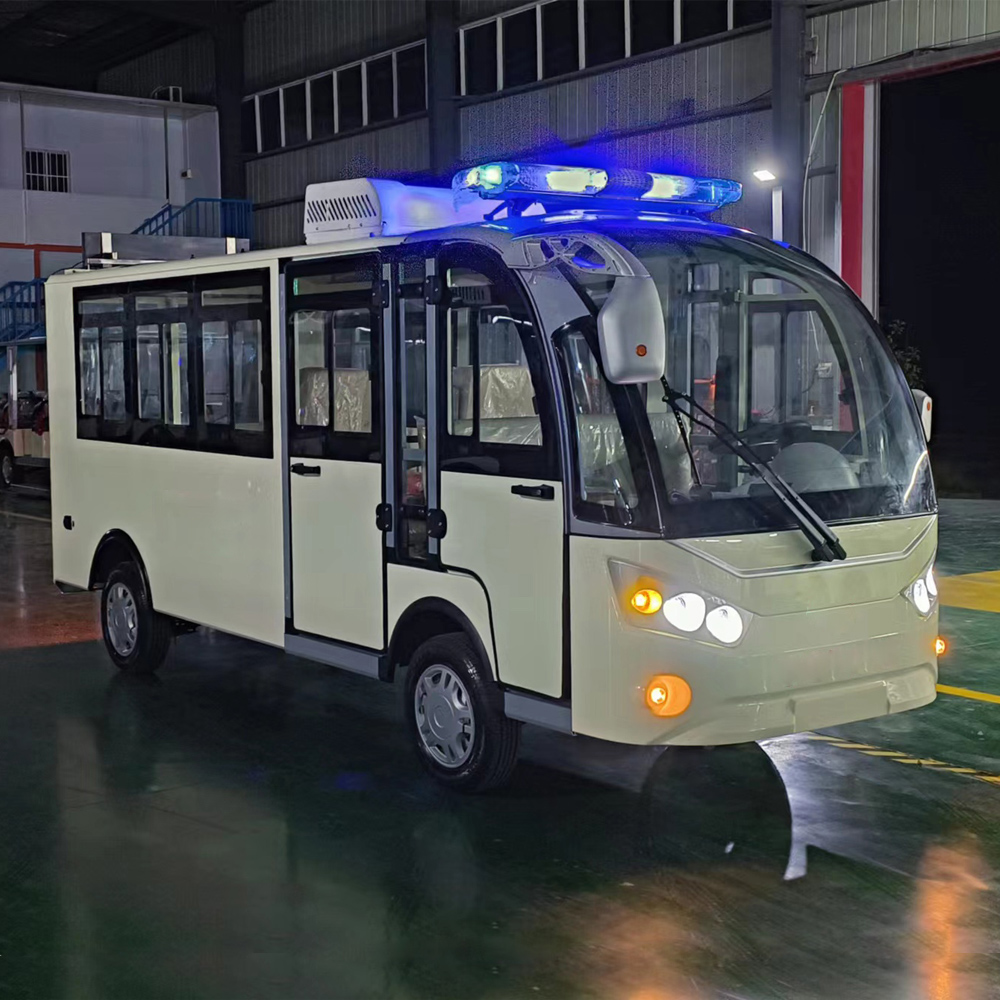

Electric Enclosed Ambulance with Air Conditioning
product detail
Enclosed ambulance interior is divided into different sections.There is a patient care area that is spacious enough to accommodate a stretcher and medical equipment.The stretcher is securely fastened to prevent movement during transit.It is equipped with advanced life support systems such as oxygen supply, defibrillators, monitors for vital signs, and various medications.
There is also storage space for medical supplies and equipment, ensuring that everything needed for patient care is readily available.The interior is designed to be clean and hygienic, with easy-to-clean surfaces to prevent the spread of infection.
Enclosed ambulances play a crucial role in emergency medical services. They provide a safe and rapid means of transporting sick or injured patients to hospitals or medical facilities. The enclosed design offers protection from the elements and external distractions, allowing medical personnel to focus on providing care.
These ambulances are staffed by trained paramedics and emergency medical technicians who can administer life-saving treatments en route to the hospital.
| Basic Parameter | Overall Dimensions (L*W*H mm) | 5000*1500*2050 | |
| Wheelbase (mm) | 2740 | ||
| Front/Rear Wheel Base(mm) | 1285/1325 | ||
| Tyre Specification | 165/70R13 | ||
| Curb Weight (kg) | 1450 | ||
| Number of Passengers (seats) | 5 | ||
| Car Body Structure | Sheet metal stamping part + plastic covering part + aluminum profile frame | ||
| Front and Rear Suspension Systems | Before: McPherson independent suspension Rear: Leaf spring non-independent suspension |
||
| Brake System | Front panel rear drum + hydraulic dual pipeline + vacuum power | ||
| Steering System | Double output steering machine + electric power | ||
| Drive System | Rear mounted rear wheel drive | ||
| Seat | Bus seats and armrests/leather seats and guardrail | ||
| Instrument Panel | Blister material | ||
| Paint | High quality paint + computer paint + professional spraying equipment | ||
| Electrical System | Battery | Category | Maintenance free battery |
| Model Number | 3-EVF-200 | ||
| Capacity | 6V200Ah（3hr） | ||
| Battery Voltage and Capacity (V/Ah) | 72/200 | ||
| Motor | Model Number | LYQ7.5-72B-24N | |
| Voltage and Power (V/kw) | DC72/7.5 | ||
| Rated Current (A) | 130 | ||
| Rated Speed (r/min) | 3000 | ||
| Maximum Speed (r/min) | 6800 | ||
| Work System | S2-60min | ||
| Class of Protection | IP54 | ||
| Insulation Class | H | ||
| Cooling Mode | Natural cooling | ||
| Controller | Category | AC asynchronous motor controller | |
| Model Number | MC3336-7240 | ||
| Supply Voltage (V) | 72 | ||
| Maximum Output Current (A) | 400 | ||
| Charger | Model Number | WT7225ZLC | |
| Input Voltage and Current (V/A) | AC220/≤11 | ||
| DC-DC Converter | Input Voltage (V) | 36-76V | |
| Output Voltage (V) | DC13.8 | ||
| Output Power (W) | 500 | ||
| Warm Air Blower | Model Number | HT0311P-KT09 | |
| Voltage/Power | 72V600W | ||
| Sound System | Two speakers, the player can be inserted U disk | ||
| Performance Parameter | Maximum Speed (km/h) | ≤30 | |
| Maximum Range (km) | ≥100 | ||
| Maximum Gradient (%) | ≥20 | ||
| Minimum Turning Radius (m) | ≤5.2 | ||
| Minimum Ground Clearance (mm) | ≥340 | ||
| Braking Distance (m) | ≤5 | ||
