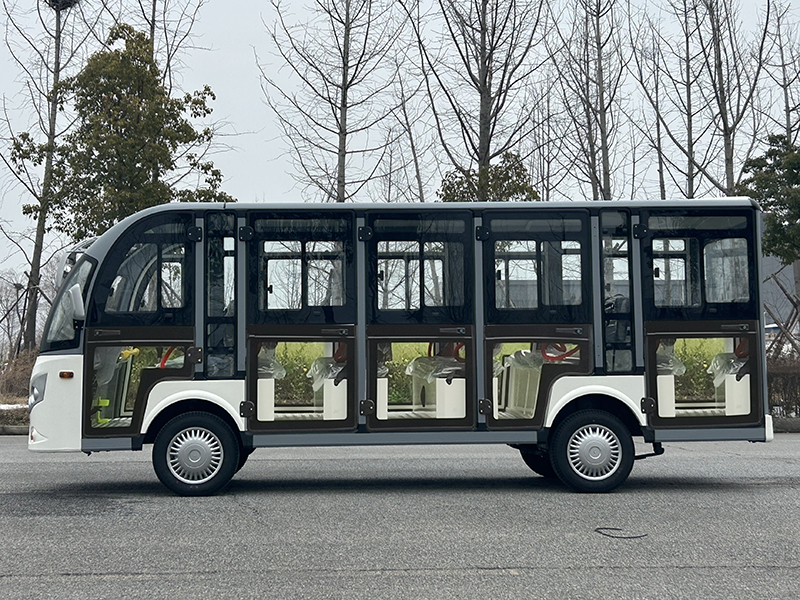

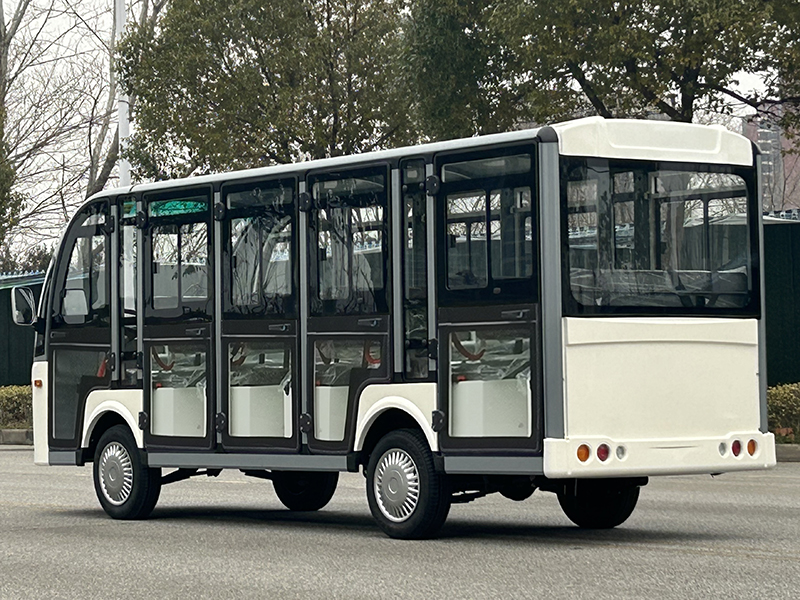

Customized Lithium Battery Sightseeing Car

Customized Lithium Battery Sightseeing Car

The customized lithium battery sightseeing car offers a unique and personalized travel experience. With a customizable design, it meets specific requirements. Powered by lithium batteries, it provides efficient and eco-friendly transportation for sightseeing tours.

Electrical System

Controller	AC asynchronous controller MC336-7240
Battery	Special maintenance free traction battery 3EVF-200AH 72V (6V * 12pcs)
Motor	Dedicated AC asynchronous motor 72V/7.5KW
Charger	Computer intelligent on-board charger 72V/25A, charging time<8 hours
DC converter	High power isolated DC converter 72V/12V-500W

Body Configuration

Front gear and wiper	Automotive laminated glass, wipers
Canopy	Aluminum alloy thickened material
Seat	Four angle adjustable luxury PU fabric seats/(optional bus seats)
Floor	Patterned aluminum flooring
Body	The body of the car is an integrated metal stamped shell, and the doors are designed with lightweight metal and aluminum alloy materials. The whole vehicle is treated with acid pickling, phosphating, cathodic electrophoresis, which is beautiful, durable, and lightweight, with unique advantages
Chassis	National standard steel, integrated tensile bending shot blasting and plastic spraying
Rearview mirror	One manually adjustable and foldable external rearview mirror on each side
LED light signal	Front headlights, turn signals, reverse lights, brake lights
Instrument panel	Injection molding instrument panel, electric vehicle combination meter, electric lock switch, combination switch, single gear wiper switch, double flash switch
Steering system	Bidirectional gear and rack steering system, automatic gap compensation function, EPS electric power assistance
Braking system	Front disc and rear drum+hydraulic dual circuit, standard with vacuum electronic assistance+handbrake parking
Suspension system	Front: MacPherson independent suspension Rear: Steel plate spring non independent suspension
Sound horn	Plug in USB Bluetooth playback host, dual audio playback. Horn, reverse reminder buzzer
Tire	165/70R13C+wheel cover

Technical Parameter

LWH	520015502050±5(mm)	Weight	1280（kg）
Rated passenger capacity (person)	14 persons	Rear trunk size	---
Maximum Driving speed	≤30km/h	Load capacity of trunk	---
Driving range(KM)	≥100（km）	Brake stability	1.9m
Maximum Climbing Slope	≥15%	Minimum ground clearance	≥135mm
Slope performance	20%	Wheelbase	2665±10(mm)
Minimum turning radius	≤6.7m	Track width	1240/1220（mm）
Braking distance	≤6m	Energy consumption per 100 kilometers	12kwh

Optional

Product Introduction

The customized lithium battery sightseeing car is a state-of-the-art vehicle designed to provide a unique and enhanced sightseeing experience. Built with cutting-edge technology, this car offers numerous benefits and features that set it apart from the rest.

Equipped with a customized lithium battery, it offers high energy density and long-lasting power, ensuring extended usage without the need for frequent charging. This makes it ideal for long tours and extended sightseeing sessions.

The car is designed with comfort and safety in mind. It provides spacious and comfortable seating, allowing passengers to enjoy the journey with ease. The advanced suspension system ensures a smooth ride, even on uneven roads.

With its customizable options, you can tailor the sightseeing car to meet your specific requirements. From exterior design to interior features, every aspect can be customized to create a personalized vehicle that reflects your style and brand.

The lithium battery offers quick charging capabilities, minimizing downtime and maximizing operational efficiency. It also has a low maintenance requirement, reducing costs and ensuring reliability.

This customized lithium battery sightseeing car is not only environmentally friendly but also offers a quiet and peaceful ride, allowing passengers to immerse themselves in the beauty of the surroundings. It is the perfect choice for tourist attractions, resorts, and other venues looking to provide a superior sightseeing experience.

Whether you are operating in a city or a natural setting, this vehicle provides comfort, style, and performance to enhance the overall experience for passengers. Embark on a memorable sightseeing journey with the customized lithium battery sightseeing car.

72V 14 Seater Electric Sightseeing Bus detail (2)c4q

Steering Wheel

The customized lithium battery sightseeing car is equipped with a steering wheel that offers precise control and a comfortable grip. It allows for smooth and effortless navigation, ensuring a safe and enjoyable driving experience.

Customized Lithium Battery Sightseeing Car detail (3)brz

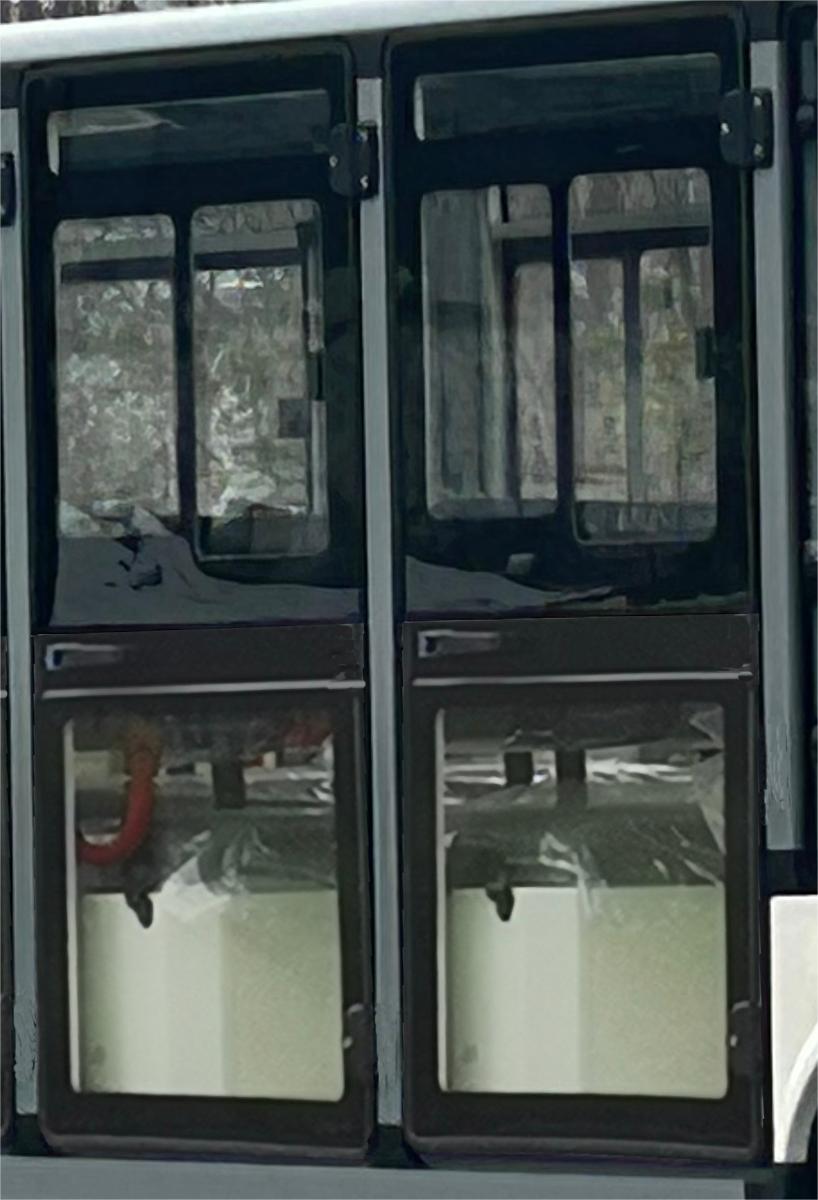

Fully Transparent Glass Doors

The customized lithium battery sightseeing car features fully transparent glass doors that offer unobstructed views and a modern look. These glass doors provide excellent visibility, allowing passengers to fully enjoy the surrounding scenery.

Customized Lithium Battery Sightseeing Car detail (2)vq0

Glass Door Handle

The customized lithium battery sightseeing car is fitted with handles that are both stylish and functional. These handles offer a comfortable grip for easy opening and closing of the doors. Made with durable materials, they ensure long-lasting use.

Customized Lithium Battery Sightseeing Car detail (1)04x

Seat Belts

The customized lithium battery sightseeing car is equipped with safety belts that provide extra protection for passengers. These belts are designed to keep passengers securely in place during the ride, reducing the risk of injury. Made from high-quality materials, they offer durability and reliability.
