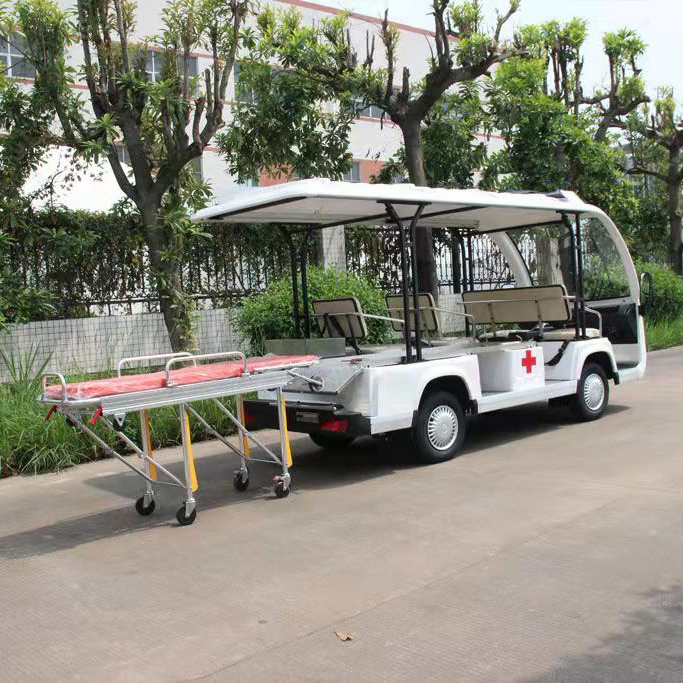

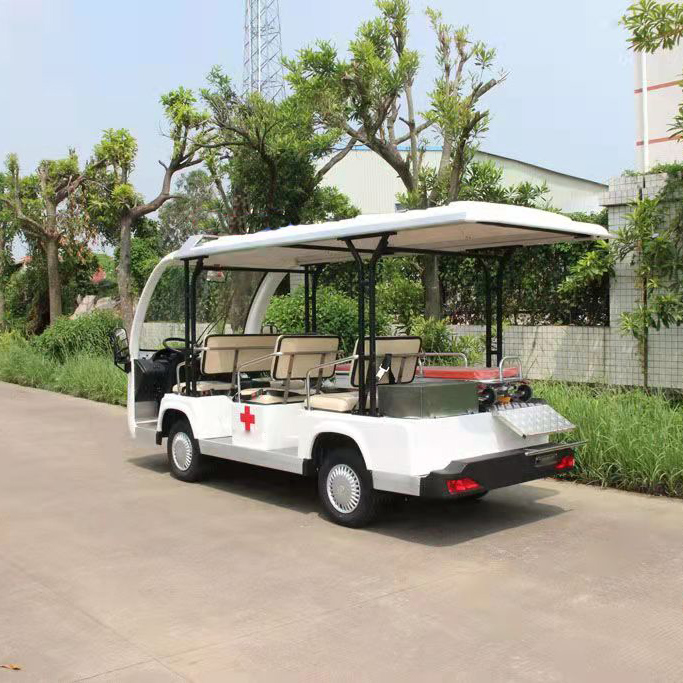

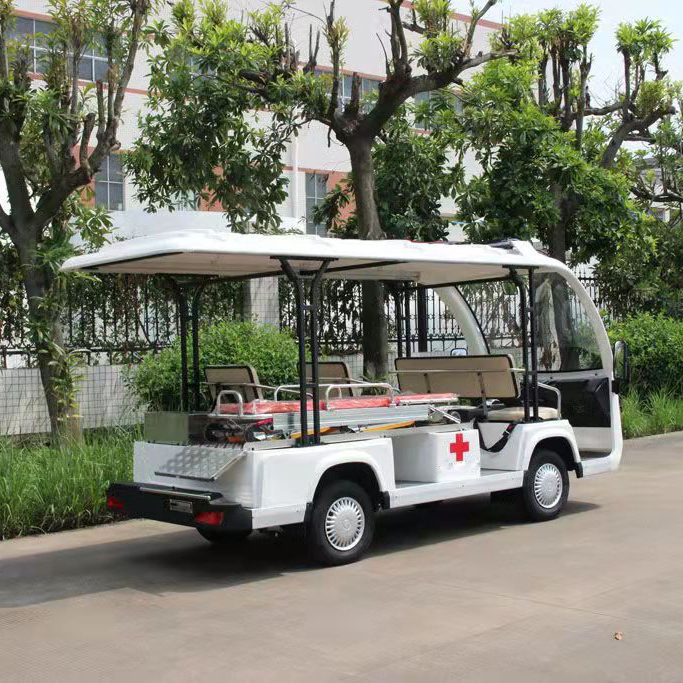

4 Seater Medical Rescue Vehicle Converted from Sightseeing Car
product detail
The price of the sightseeing car is relatively cheap compared with the traditional ambulance, and the conversion cost is also relatively low, which makes some areas or units with limited budgets can also be equipped with medical rescue vehicles, expanding the coverage of medical rescue.The later maintenance costs are also relatively low, reducing the cost of use, and it is an economical choice for some small medical institutions or rescue needs in specific scenarios.
Equipped with basic medical equipment, it can handle emergency situations to a certain extent. This may include a stretcher for transporting patients, an oxygen supply system for those in need of oxygen therapy, first aid kits for treating minor injuries, and basic monitoring devices to assess a patient's vital signs. Although not as comprehensive as a professional ambulance, it can still provide crucial initial medical care and transportation.
This converted medical rescue vehicle is particularly useful in tourist attractions, large parks, and other areas where traditional ambulances might face difficulties in reaching quickly. It can be used to respond to accidents or sudden illnesses among tourists or visitors. It can also serve as a supplementary resource in areas with limited medical resources or during large-scale events where additional medical support is needed.
|
Product Name |
LMT8B-JS Rescue Vehicle |
|
L*W*H（mm) |
4500*1500*2000 |
|
Car Load |
1000 kg (including driver, passenger and cargo) |
|
Maximum Mileage |
80-100 km |
|
Minimum Ground Clearance |
≥110mm |
|
Minimum Braking Distance |
≤4m |
|
Minimum Turning Radius |
≤3.5m |
|
Max Climb Capability |
25 % |
|
Charging Time |
6-8 hours |
|
Maximum Forward Speed |
30 km/h |
|
Other |
Vehicle Waterproof Design |
|
Electric System
|
Motor: 48V 5.0KW AC motor, with speed sensor, precise control of speed. Strong overload capability. High temperature resistance, low noise. |
|
Battery: Dedicated 8 6V high-capacity deep cycle maintenance-free batteries. |
|
|
Charger: Computer intelligent automatic high frequency high efficiency pulse charger, input voltage is 220V AC, frequency 50HZ, output DC 72V, current 25A. Temperature compensation with battery temperature sensor. Extend battery life. |
|
|
Controller: American Curtis controller, with personalized programming, CMOS stepless transmission system. Speed can be adjusted according to customer requirements |
|
|
Accelerator: Hall type contactless stepless transmission system |
|
|
Vehicle Chassis |
Professional frame type high strength steel bending welded chassis. Sand blasting, zinc spraying, paint three anti-rust treatment |
|
Vehicle Body Covering |
The whole car injection molding body has super anti-impact function, durable and does not change color |
|
Vehicle Backshaft |
High efficiency gear drive rear shaft, maintenance free for life. With main gearbox and differential. Low noise |
| Brake System | Adopts hydraulic double circuit front disc and rear drum brake with mechanical parking (hand brake). |
|
Front Suspension System |
McPherson independent suspension, coil spring + cylinder hydraulic shock absorption |
|
Rear Suspension System |
Multi-plate thickening leaf spring and hydraulic damping system |
|
Steering System |
Electric direction assist system, multistage rack and pinion steering system, with steering automatic return function |
|
Lighting System |
High beam, low beam, fog light, turn signal, tail light, brake light |
|
Seat System |
Integral injection molding seat, high strength and durable material, ergonomic principle, comfortable ride |
| Vehicle Wheel |
Vacuum Meridian 155R12C soft tire, comfortable, wear-resistant |
| Center Console |
Fog light switch, failure light switch, DVD with USB interface, combination switch, double arm return wiper |
| Seat Setting | 4 (including driver's seat) |
