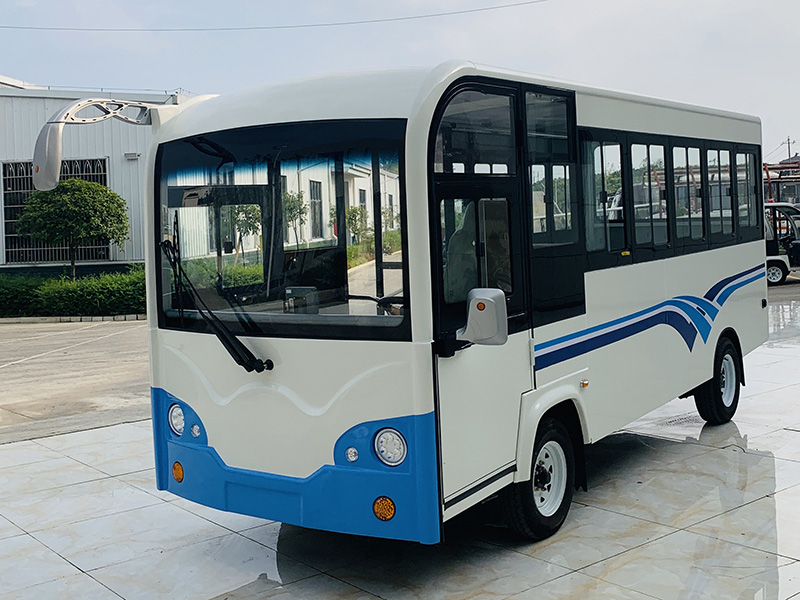

22 Seater Lithium Battery Sightseeing Bus

22 Seater Lithium Battery Sightseeing Bus

The 22 Seater lithium battery sightseeing bus provides a comfortable and eco-friendly transportation option. With a large seating capacity, it allows for a group to enjoy sightseeing tours. Powered by lithium batteries, it offers quiet operation and zero-emission for a pleasant journey.

Electrical System

Electric control	Curtis AC 96V
Battery	6v200ah / pcs, 16 pcs / 96V maintenance free battery
electric machinery	15kw AC motor
battery charger	Portable intelligent charger
Charging time	8-10 hours (80% discharge rate)

Body Configuration

Basic body color	White, green, yellow and blue (customized according to customer needs)
chair	Driver's single seat, opposite the rear seat
car body	Steel frame + FRP shell
Doors and windows	The main driver opens the door unilaterally, with aluminum alloy sliding toughened glass window on the top and transparent PC board on the bottom. A middle opening electric door on the right side of the vehicle
Instrument panel	Liquid crystal instrument (including current, voltage, vehicle speed, rotating speed, mileage, electric quantity, light signal, etc.)
Rearview mirror	One manual external rearview mirror on the left and right + internal rearview mirror
Lights and signals	Combined front lamp, combined rear tail lamp, side turn signal lamp, interior lamp, electric horn, reversing buzzer and reversing radar
sound	Car MP3, professional speaker
switch	Start switch, light and wiper combination switch, front and rear reversing, interior lamp, warning lamp and rocker switch of backup alarm
Frame	Steel frame, surface antirust treatment
Steering wheel	Polyurethane foam steering wheel
paint	Computer paint mixing, professional spraying equipment

Chassis

Power train	Stepless speed regulation system
steering system	Recirculating ball steering machine + directional assistance
Front axle and suspension	Leaf spring non independent suspension, cylindrical hydraulic damping
Rear axle and suspension	Full floating rear axle, leaf spring non independent suspension, cylindrical hydraulic damping
braking system	Front and rear drum hydraulic brake, dual circuit hydraulic brake, brake booster, parking brake device
tyre	Steel wheel hub / front and rear 165r13c vacuum radial tire

Technical Parameter

passenger	22人	Minimum ground clearance	150mm
LWH	5500×1700×2350mm	braking distance	≤7m
Vehicle equipment quality	1570kg	Charging input voltage	220v
Vehicle load	1650kg	Maximum travel speed	26km/h
Front and rear track width	1470/1470mm	Driving range (no load on level road)	100km
wheelbase	3100mm	Maximum climbing gradient	15%
Minimum turning radius	7m

Optional

22 Seater Lithium Battery Sightseeing Bus (3)bea

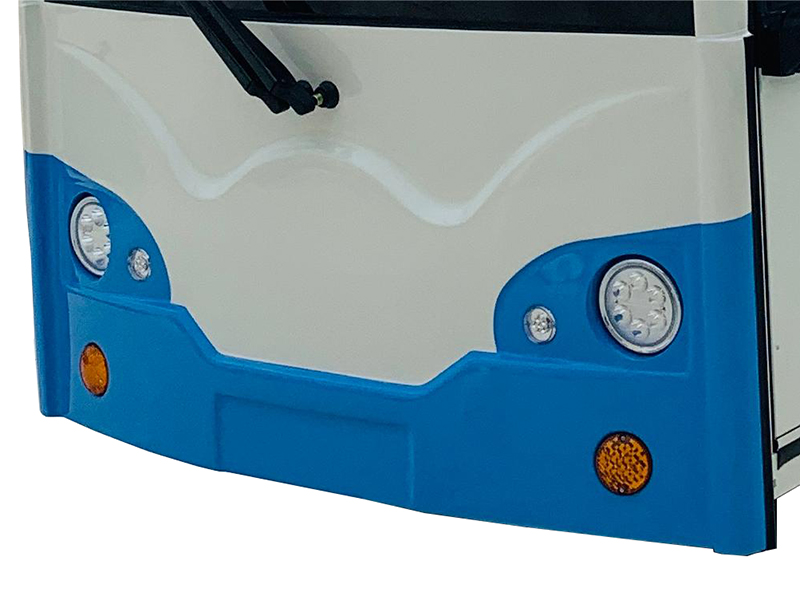

Led Light

The 22 Seater lithium battery sightseeing bus is equipped with LED lights that offer bright and energy-efficient illumination. These lights provide excellent visibility, ensuring a safe and enjoyable sightseeing experience for passengers. With long lifespan and low power consumption, they add to the overall efficiency of the bus.

22 Seater Lithium Battery Sightseeing Bus (4)nzj

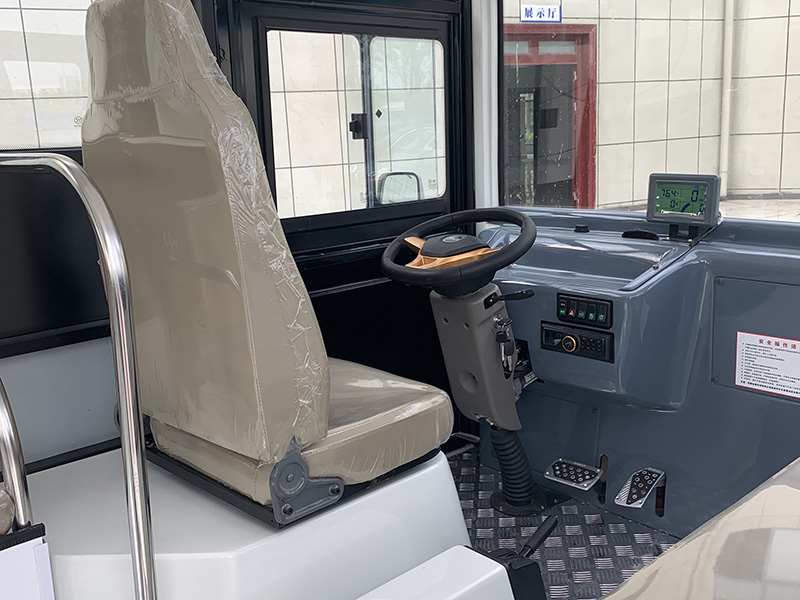

Steering Wheel

The 22 Seater lithium battery sightseeing bus features a steering wheel that offers precise control and a comfortable grip. Designed with ergonomic considerations, it allows for easy and effortless handling, enhancing the driving experience and ensuring safety on the road.

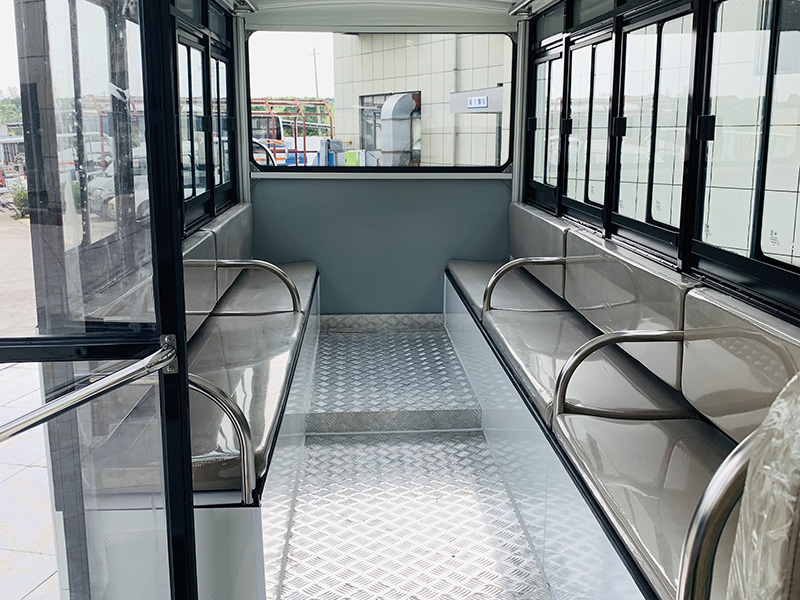

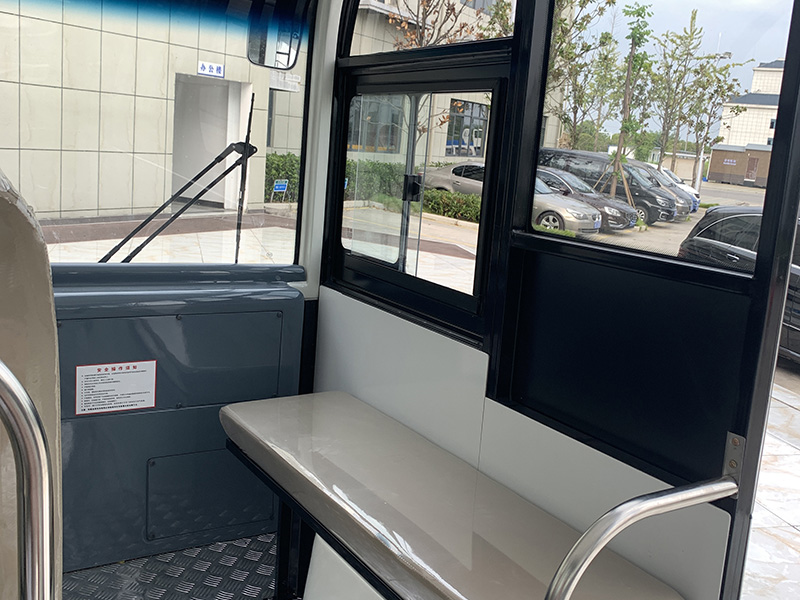

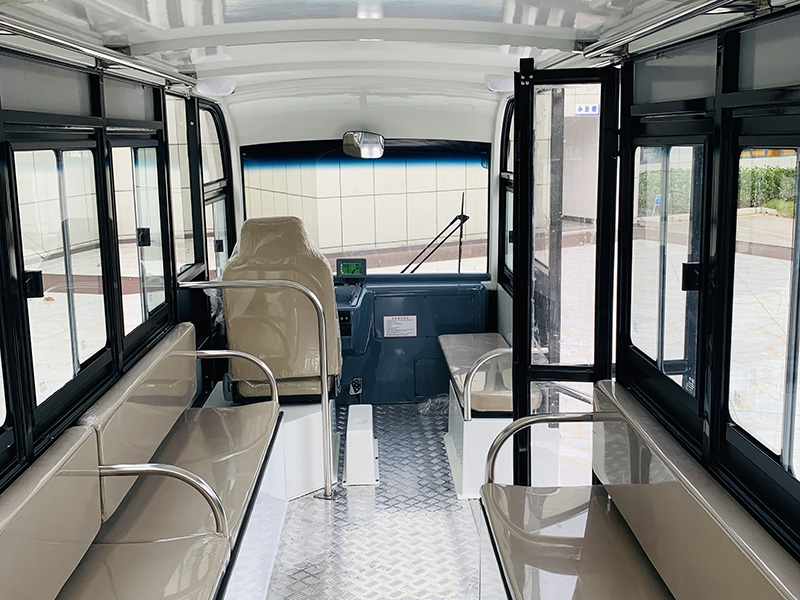

Seat

The 22 Seater lithium battery sightseeing bus has a single seat for the main driver and opposite seating in the back. The single driver's seat provides focused control, while the rear opposite seating allows for social interaction and a enhanced sightseeing experience. This configuration maximizes space and offers a comfortable and efficient ride for passengers.

Tire

The 22 Seater lithium battery sightseeing bus is equipped with tires that offer excellent grip and durability. These tires are specifically designed to handle the weight of the bus and provide a smooth and stable ride. Made from high-quality materials, they ensure reliability and safety, allowing passengers to enjoy a comfortable sightseeing journey.
